Cooling Tower Systems, Inc.

we offers the best warranty in the industry, which is 20 years on the FRP (fiberglass reinforced polyester) components that are manufactured with a gel coating to protect it from ozone’s and UV lights. Our FRP is mixed with a gel coating that strengthens and protects it from the UV (ultraviolet) light rays in the ozone. This provides a higher resistance to rot and decay to all FRP portions of the cooling towers in extreme climate environments.

Why is CTS the best?

Design Features:

The non-rusting FRP casing and basin, circular in shape, eliminates special installation requirements. Prevailing wind directions will not affect tower performance.

Casing:

Easy access through casing simplifies cleaning. Individual fiberglass panels are stainless steel bolted together for periodic wash down and general clean up. The CTS FRP cooling tower is designed for durability and long life even under the most severe environmental weather conditions.

Fan Blades:

Aerodynamically designed propeller type fan blades are used to conserve power and assure quiet operations. CTS models T-25 through T-230 feature a factory-balanced ABS plastic blade. CTS models T-240 and above feature an all aluminum alloy adjustable fan.

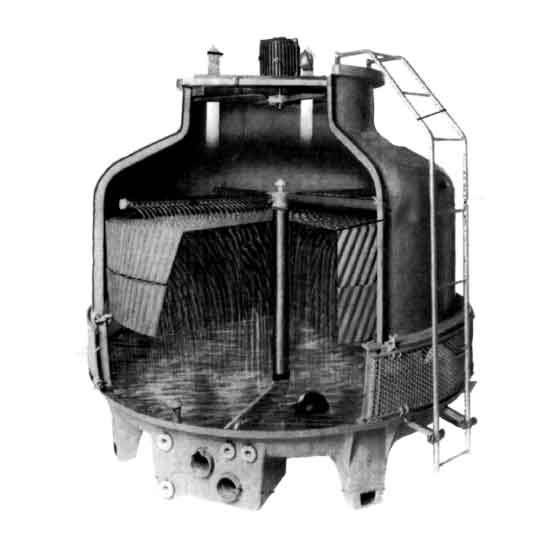

Engineered for energy and
high performance

The fan motor is weatherproffed and totally
enclosed allowing for less noisy and more efficient
long term performance.
The sprinkler pipes are sturdy PVC material pierced
with closely spaced holes allowing through distribution
of water in a rotating spray covering the entire surface
of the filler.
The round design permits maximum air intake
regardless of wind direction
Efficient operation results from the smooth pumping of
re-circulated water through the stand pipe and up into
the sprinkler pipes.
Housing panels and water basin are built of fiberglass reinforced
plastic ensuring rust free long term performance even under the
most severe environmental conditions.
The efficiently designed PVC filler creates a surface
area that allows for maximum dispersiion of water
and creates a superior cooling effect.
A large capacity durable water basin constructed
from rustproof fiberglass reinforced plastic guarantees
low maintenance and long term operation.
A large diameter outlet pipe draws a constand
supply of cooled water from the basin to serve
the facility

Why is CTS the best?

Fan Drive:

CTS models T-25 through T-2200 have direct drive fan motors. CTS models T-2225 and larger feature a unique belt drive, designed to reduce noise levels, with optional gear drives.

Water Distribution System:

CTS models T-25 through T-260 use an ABS plastic sprinkler with stainless steel shaft.  CTS models T-270 and above use an aluminum alloy sprinkler head.  Both types of sprinkler head require little or no head pressure loss and minimum maintenance.

Inlet Louvers:

Non-rusting PVC plastic mesh provides easy access to sump while preventing foreign objects from entering water basin.

Ladder

Provided for maintenance and inspection accessibility to fan and sprinkler systems.  (Models T-240 and above.)

Fill Material:

Honeycomb heat-embossed PVC is formed to permit high heat transfer efficiency.  The CTS fill is suitable for operation with inlet water temperatures of 125° F.  For higher temperatures, contact your representative for quote.

20-year warranty

The reason we can give a 20-year warranty verses others in the industry that give up to a 5 years warranty, is due to the FRP of tower to include the casing and cold-water basin. They have been gel coated during the manufacturing process, providing protection from UV ultraviolet ozone.
